ENGINE, 5.3L ECOTEC3 V8

• (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm); featuring all-new Dynamic Fuel Management that enables the engine to operate in 17 different patterns between 2 and 8 cylinders
• depending on demand
• to optimize power delivery and efficiency

• Rear axle
• 3.42 ratio (Included with (L84) 5.3L EcoTec3 V8 engine and (NHT) Max Trailering Package.)
• Durabed
• pickup bed
• GVWR
• 7000 lbs. (3175 kg) (Requires Crew Cab or Double Cab 4WD model and (L3B) 2.7L Turbo engine.)
• Automatic Stop/Start
• Transfer case
• single speed electronic Autotrac with rotary dial control (4WD models only)
• Four wheel drive
• Battery
• heavy-duty 730 cold-cranking amps/80 Amp-hr
• maintenance-free with rundown protection and retained accessory power (Included and only available with (L3B) 2.7L Turbo engine or (L84) 5.3L EcoTec3 V8 engine.)
• Alternator
• 220 amps (Included and only available with (L3B) 2.7L Turbo engine
• (LM2) Duramax 3.0L Turbo-Diesel I6 engine or (NHT) Max Trailering Package.)
• Frame
• fully-boxed
• hydroformed front section
• Steering
• Electric Power Steering (EPS) assist
• rack-and-pinion
• Brakes
• 4-wheel antilock
• 4-wheel disc with DURALIFE rotors
• Brake lining wear indicator
• Capless Fuel Fill
• Exhaust
• single outlet
• Wheel
• 17" x 8" (43.2 cm x 20.3 cm) full-size
• steel spare
• Tire carrier lock
• keyed cylinder lock that utilizes same key as ignition and door
• Bumper
• front (Body-color.)
• Bumper
• rear (Body-color.)
• CornerStep
• rear bumper
• Cargo tie downs (12)
• fixed rated at 500 lbs per corner
• Grille (Body color bars with high gloss Black mesh inserts.)
• Black Bowtie
• (front grille)
• Fog lamps
• front
• LED
• Lamps
• cargo area
• cab mounted integrated with center high mount stop lamp
• with switch in bank on left side of steering wheel
• LED Cargo Area Lighting located in pickup bed
• activated with switch on center switch bank or key fob
• Taillamps
• LED with signature
• Mirrors
• outside heated power-adjustable (When (PQB) Safety Package is ordered
• includes Perimeter Lighting.)
• Mirror caps
• painted (High gloss Black.)
• Glass
• deep-tinted
• Door handles
• body-color
• Tailgate and bed rail protection cap
• top

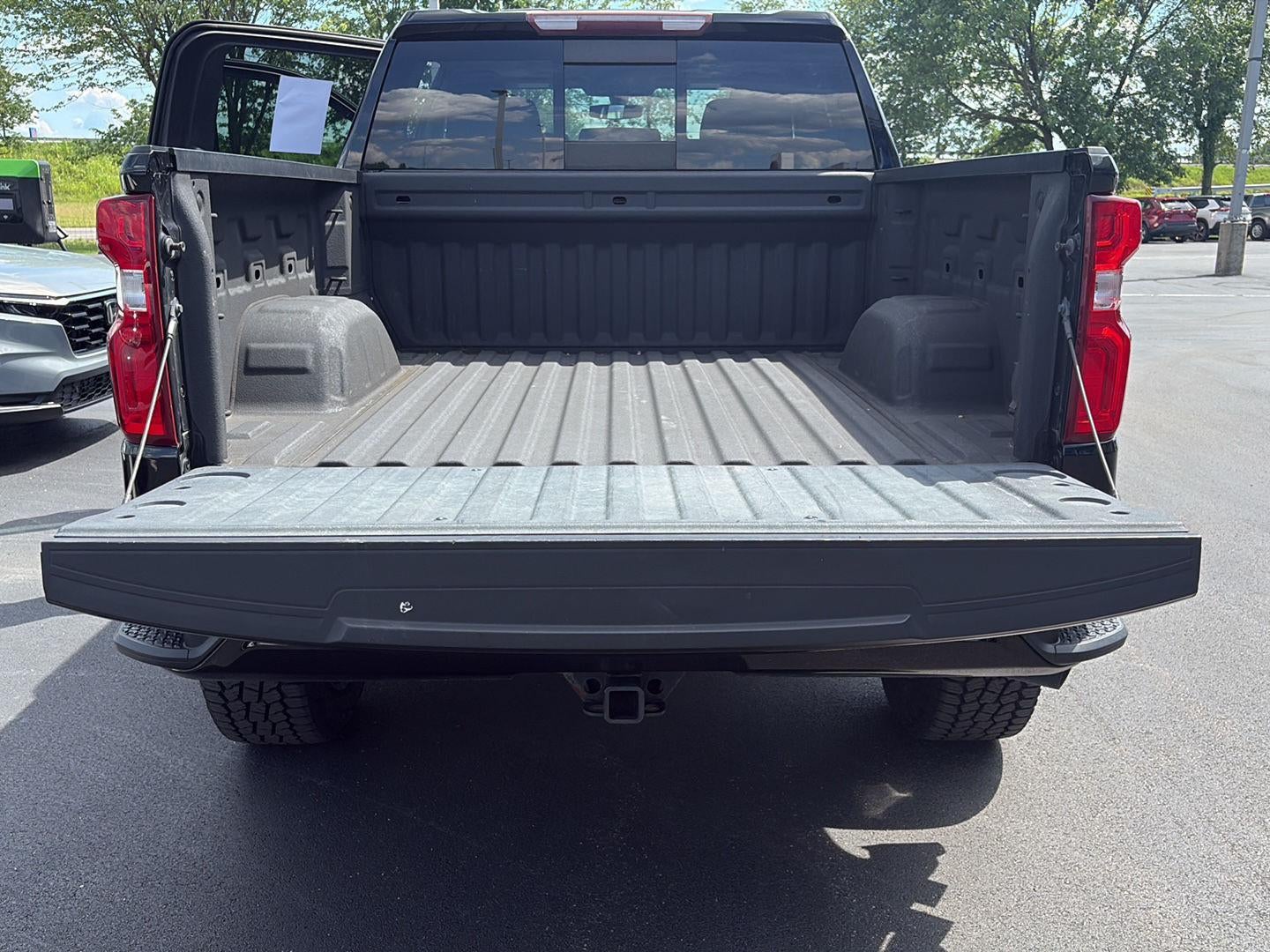

• Tailgate
• gate function manual with EZ Lift
• includes power lock and release

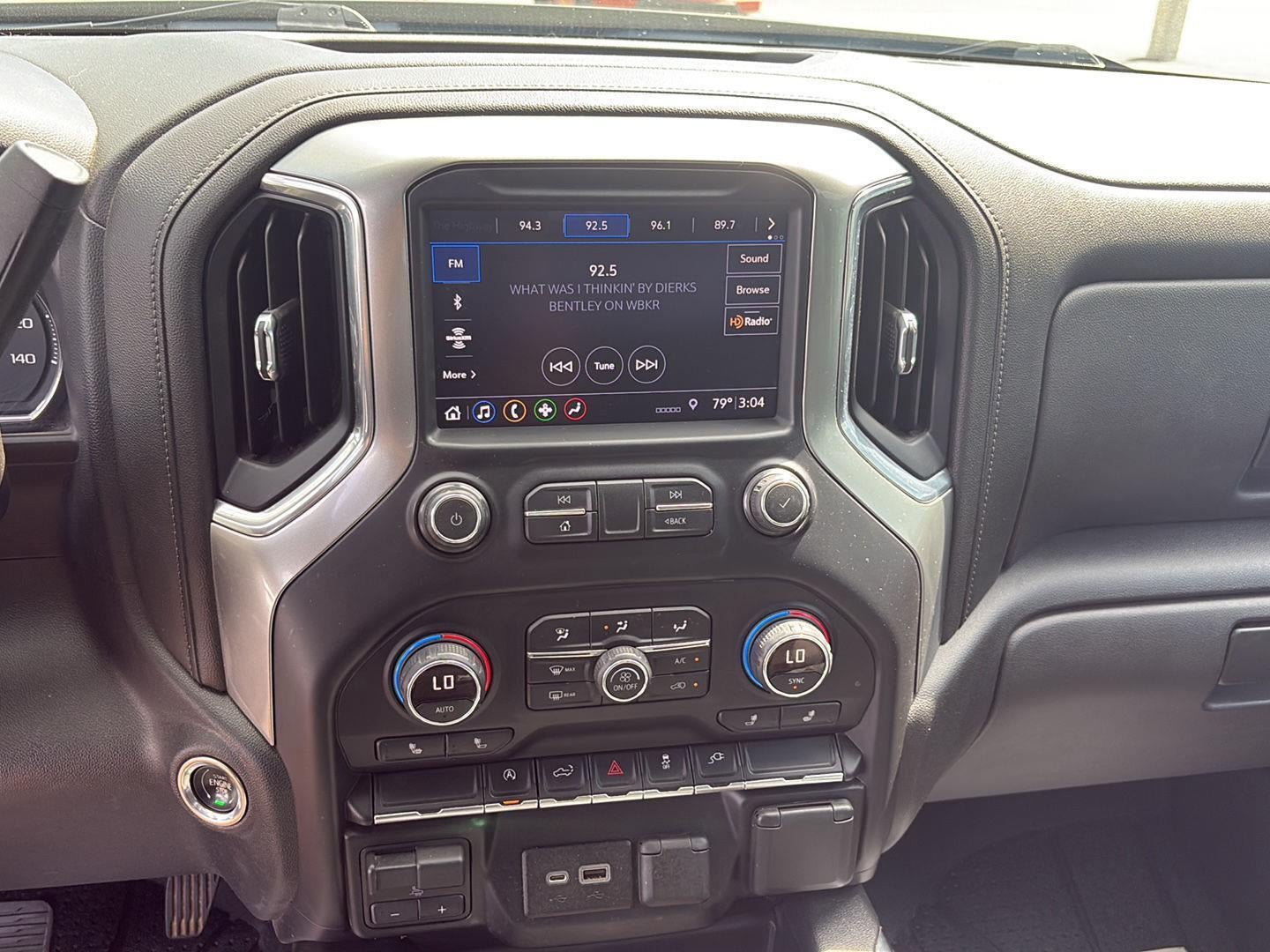

• Audio system feature
• 6-speaker system
• Chevrolet 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable internet connection for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first) (Available Wi-Fi requires compatible mobile device
• active OnStar service and data plan. Data plans provided by AT&T. Visit onstar.com for details and system limitations.)
• Seat adjuster
• driver 4-way manual
• Seat adjuster
• passenger 4-way manual
• Floor covering
• color-keyed carpeting

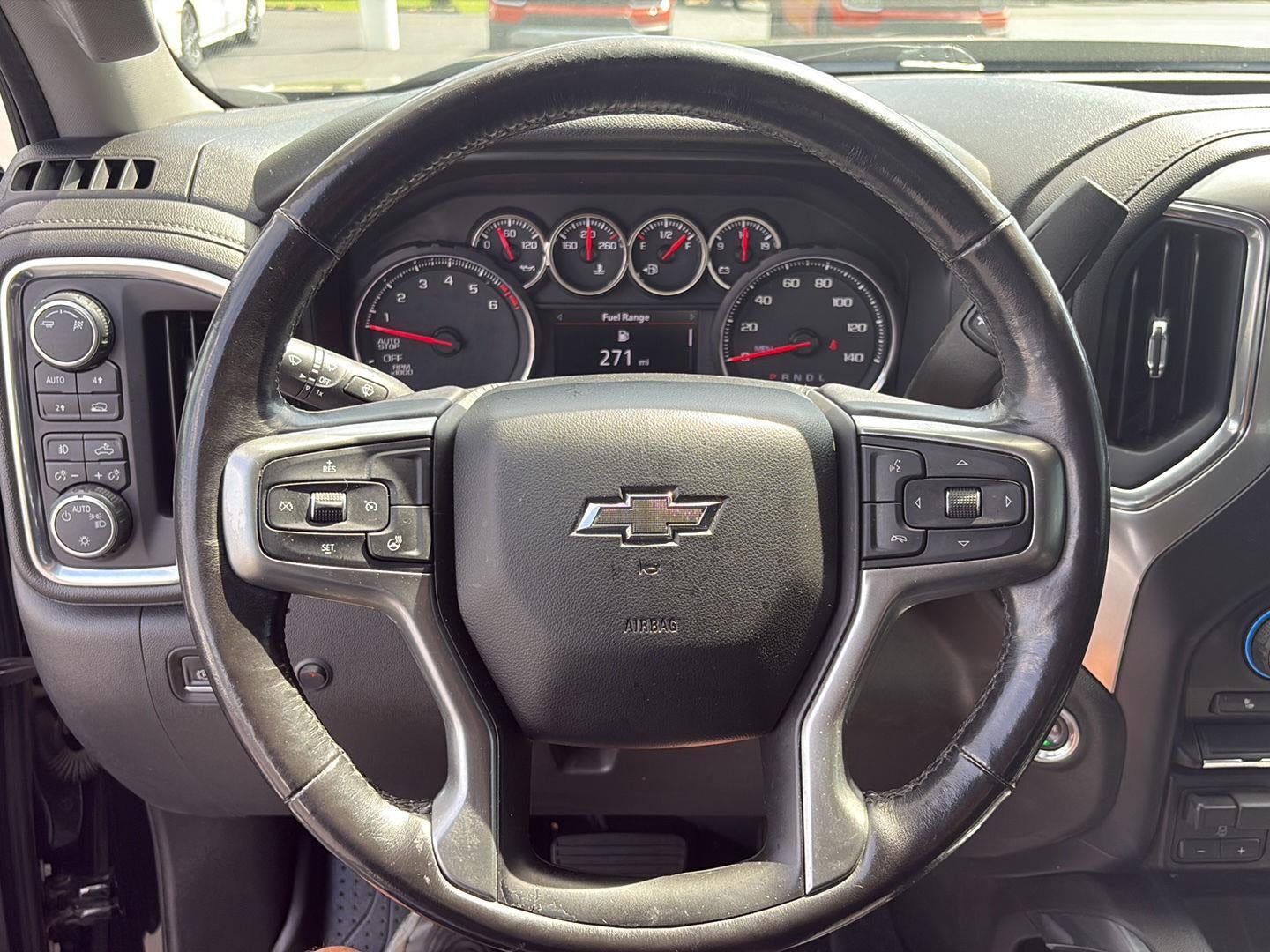

• Steering wheel
• urethane
• Steering wheel audio controls
• Steering column
• lock control
• electrical

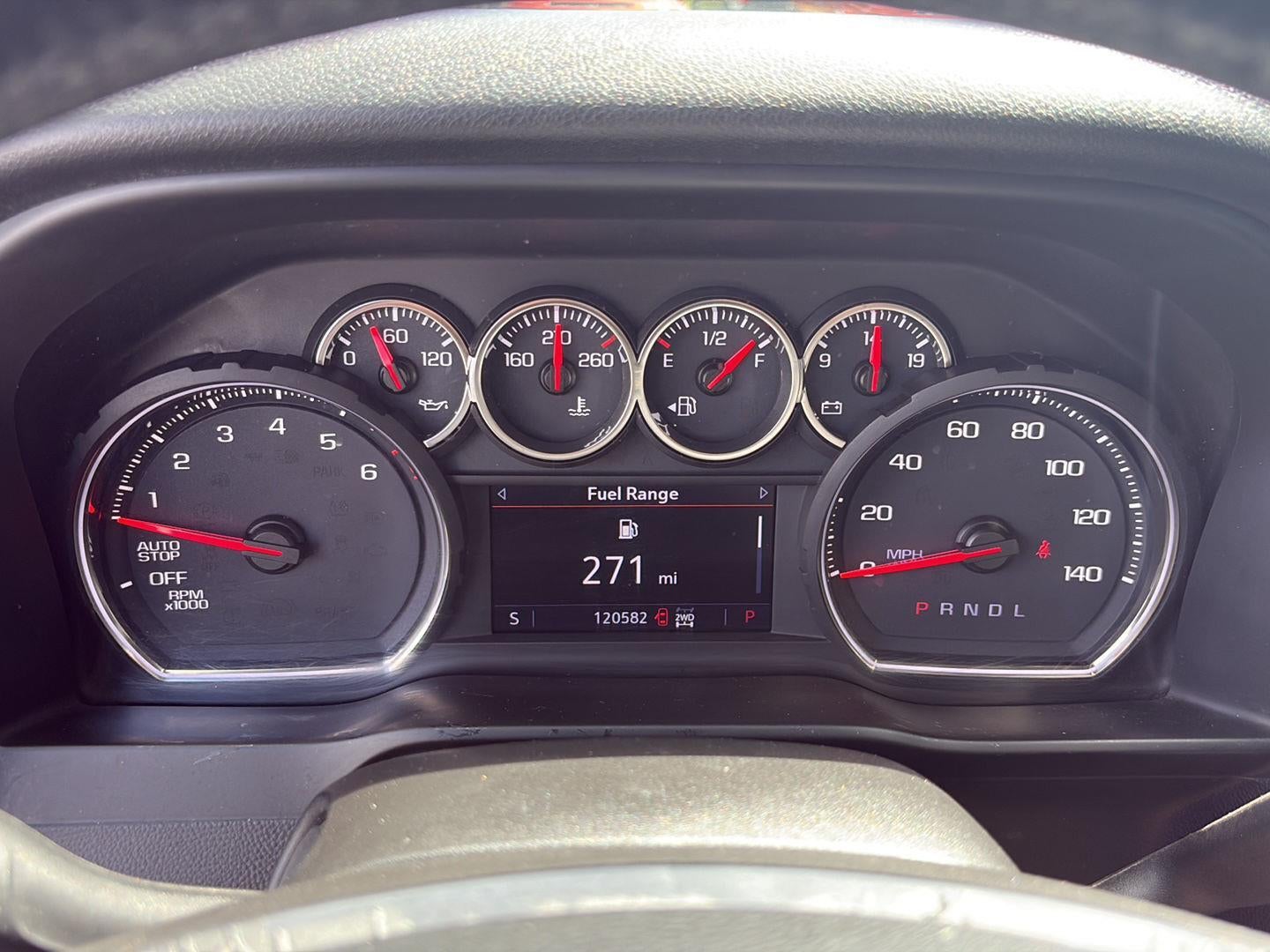

• Instrument cluster
• 6-gauge cluster featuring speedometer
• fuel level
• engine temperature
• tachometer
• voltage and oil pressure
• Driver Information Center
• 4.2" diagonal color display includes driver personalization
• Exterior Temperature Display located in radio display
• Compass located in instrument cluster
• Rear seat reminder
• Window
• power front
• drivers express up/down
• Remote vehicle starter system
• Cruise control
• electronic with set and resume speed
• steering wheel-mounted
• Theft-deterrent system
• unauthorized entry
• Mirror
• inside rearview
• manual tilt
• Assist handles front A-pillar mounted for driver and passenger
• rear B-pillar mounted

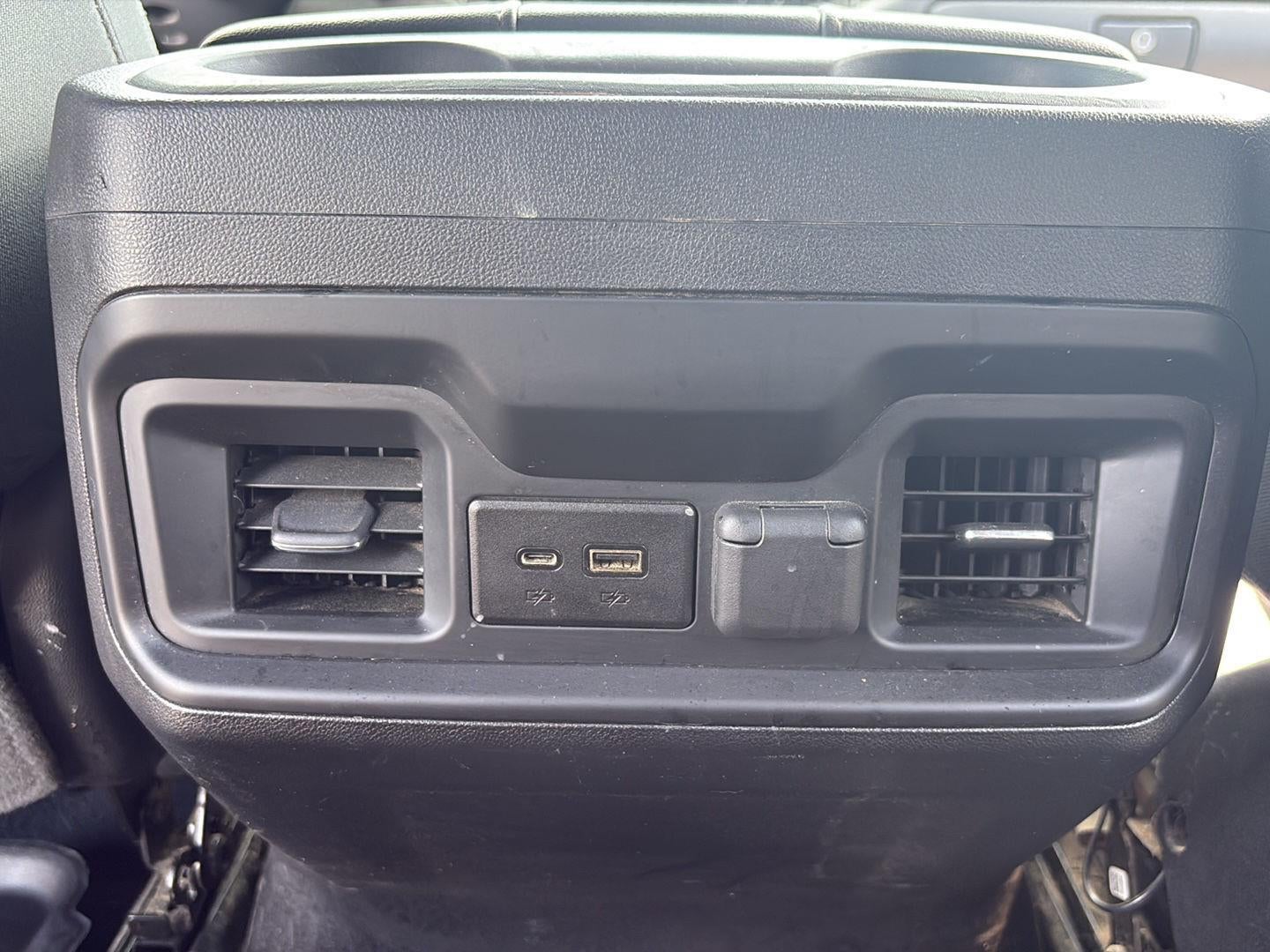

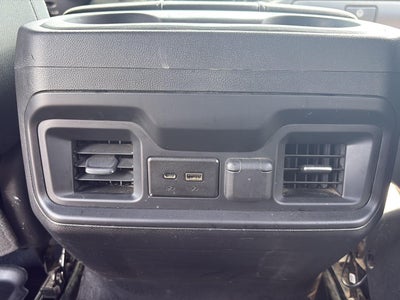

• USB ports
• dual
• charge-only (2nd row)
• StabiliTrak
• stability control system with Proactive Roll Avoidance and traction control
• includes electronic trailer sway control and hill start assist
• Airbags
• dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Chevrolet Connected Access with 10 years of standard connectivity which enables services such as
• Vehicle Diagnostics
• Dealer Maintenance Notification
• Chevrolet Smart Driver
• Marketplace and more (Limitations apply. Not transferable. Standard connectivity available to original purchaser for ten years from the vehicle delivery date for model year 2018 or newer Chevrolet vehicles. See onstar.com for details and further plan limitations. Connected Access does not include emergency or security services. Availability and any additional services enabled by Connected Access are subject to change.)
• Teen Driver configurable feature that lets you activate customizable vehicle settings associated with a key fob
• to encourage safe driving behavior. It can limit certain vehicle features
• and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire Pressure Monitoring System with Tire Fill Alert (does not apply to spare tire)

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - City (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 220
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3800
• Gross Axle Wt Rating - Rear (lbs): 3800
• Curb Weight - Front (lbs): 2839
• Curb Weight - Rear (lbs): 1976
• Gross Vehicle Weight Rating Cap (lbs): 7000
• Gross Combined Wt Rating (lbs): 15000
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9600
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 960
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 670
• Maximum Trailering Capacity (lbs): 11400
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Solid Axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): - TBD -
• Axle Capacity - Rear (lbs): - TBD -
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 50.0
• Shock Absorber Diameter - Rear (mm): 50.0
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.5 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: QDF
• Rear Tire Order Code: QDF
• Spare Tire Order Code: XCQ
• Front Tire Size: 265/65R18SL
• Rear Tire Size: 265/65R18SL
• Spare Tire Size: 265/70R17SL
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 17 x 8
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.3
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 24
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 147.43
• Length, Overall (in): 231.7
• Width, Max w/o mirrors (in): 81.24
• Height, Overall (in): 75.51
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.09
• Ground Clearance, Rear (in): 8.09
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.92
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 71.4
• Cargo Box Width @ Wheelhousings (in): 50.63
• Cargo Box (Area) Height (in): 22.4
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 62.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 43.03
• Front Leg Room (in): 44.53
• Front Shoulder Room (in): 66.02
• Front Hip Room (in): 61.18
• Second Head Room (in): 40.12
• Second Leg Room (in): 43.4
• Second Shoulder Room (in): 65.16
• Second Hip Room (in): 60.24
• Summary

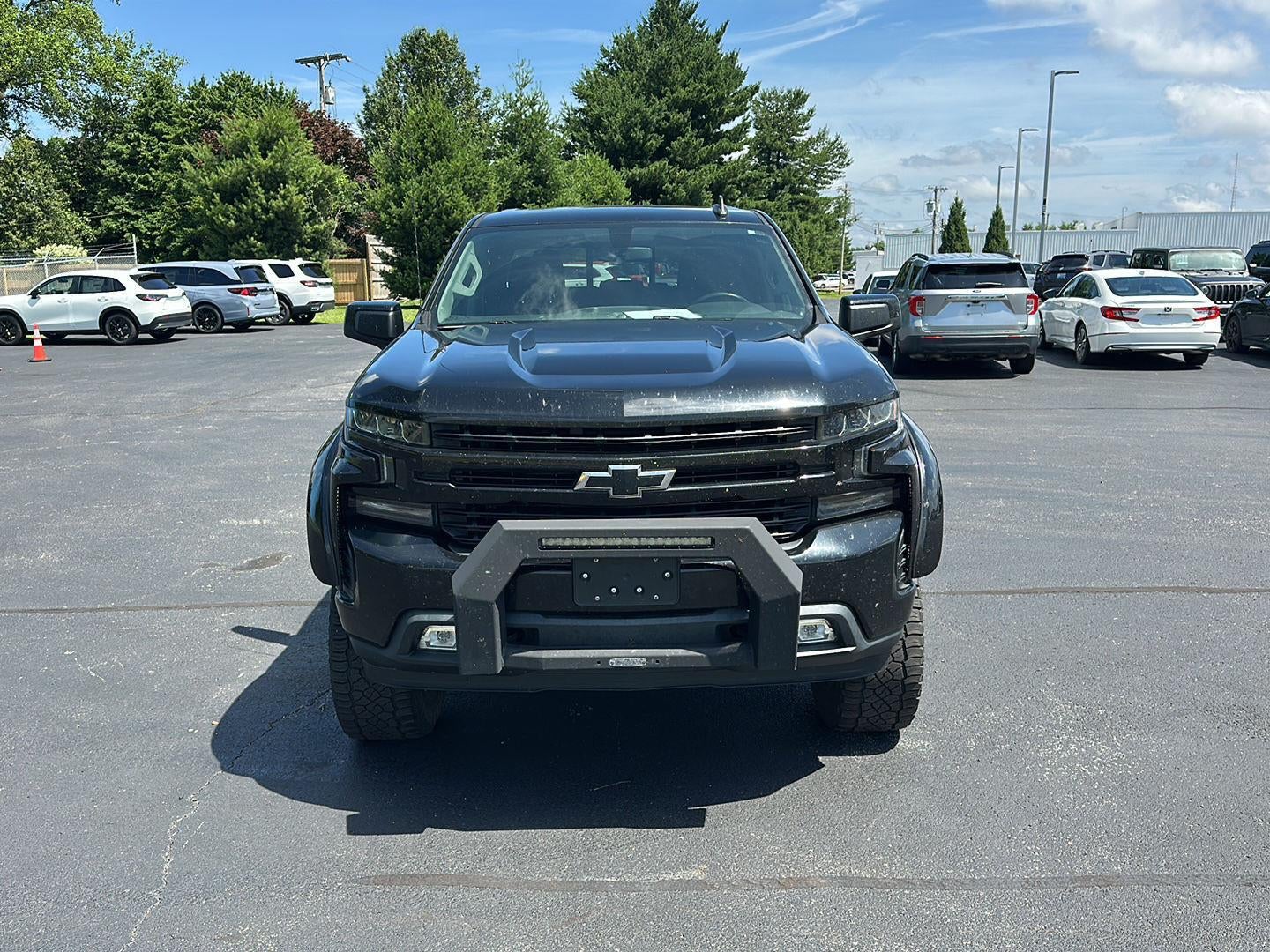

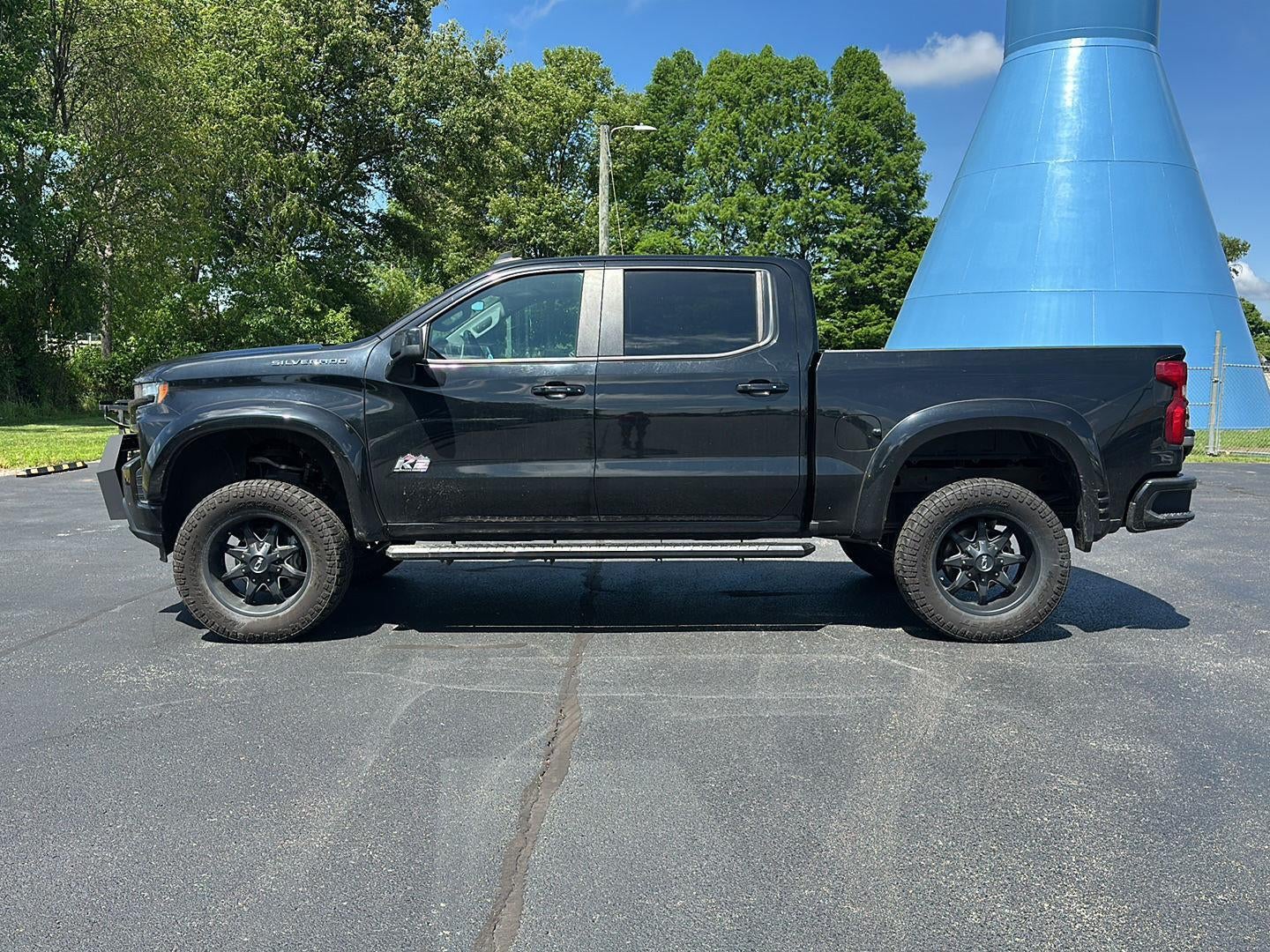

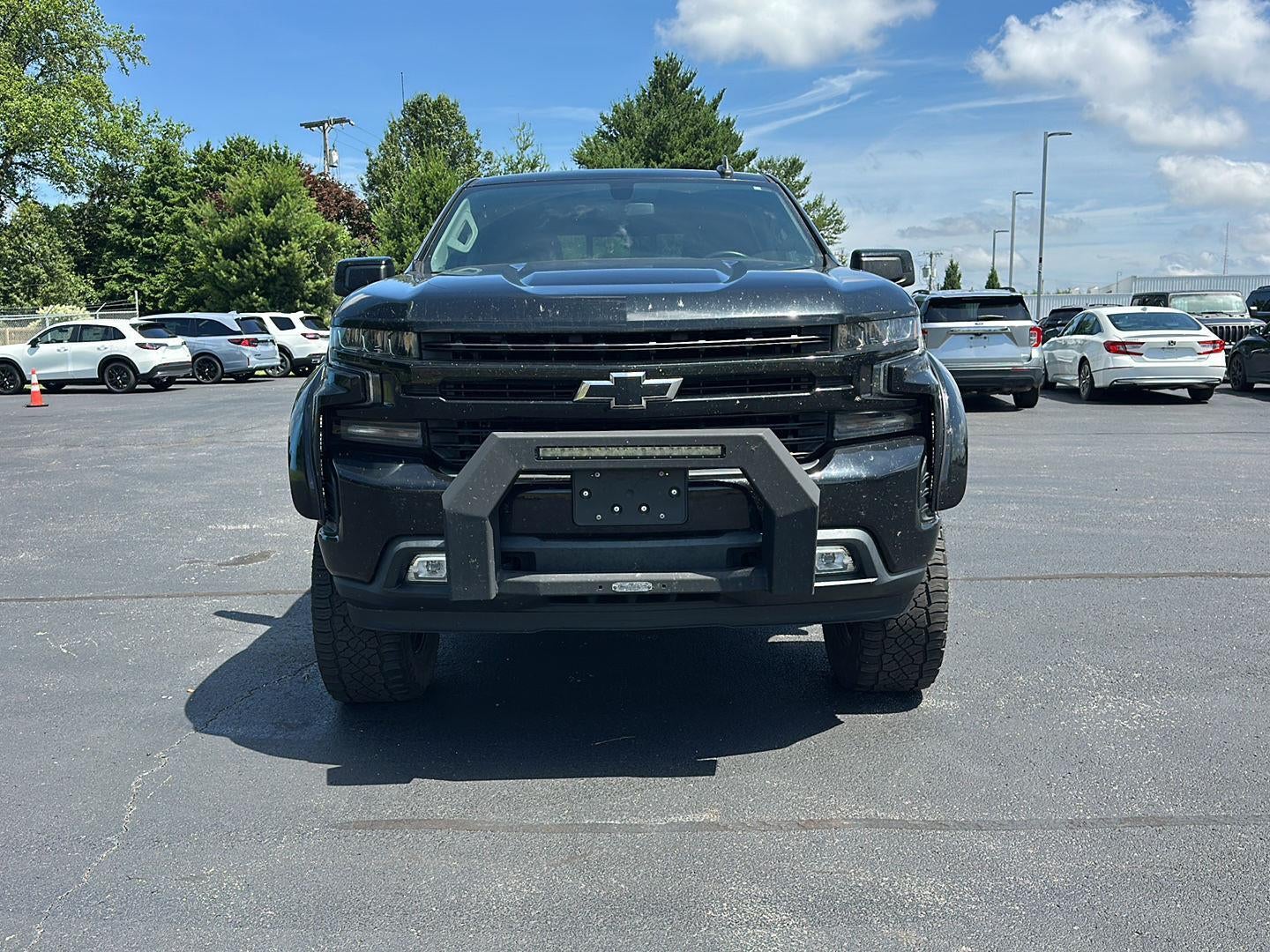

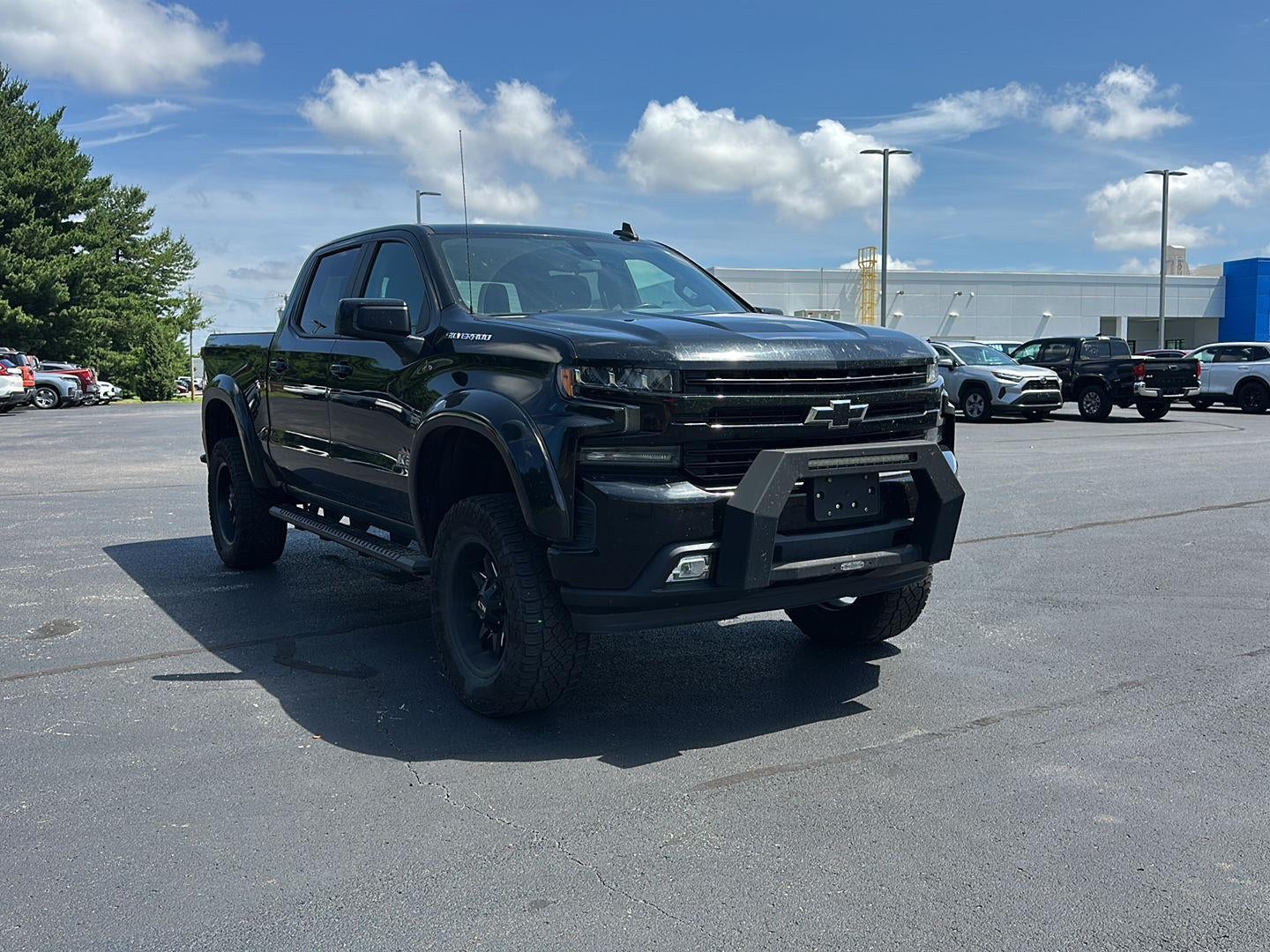

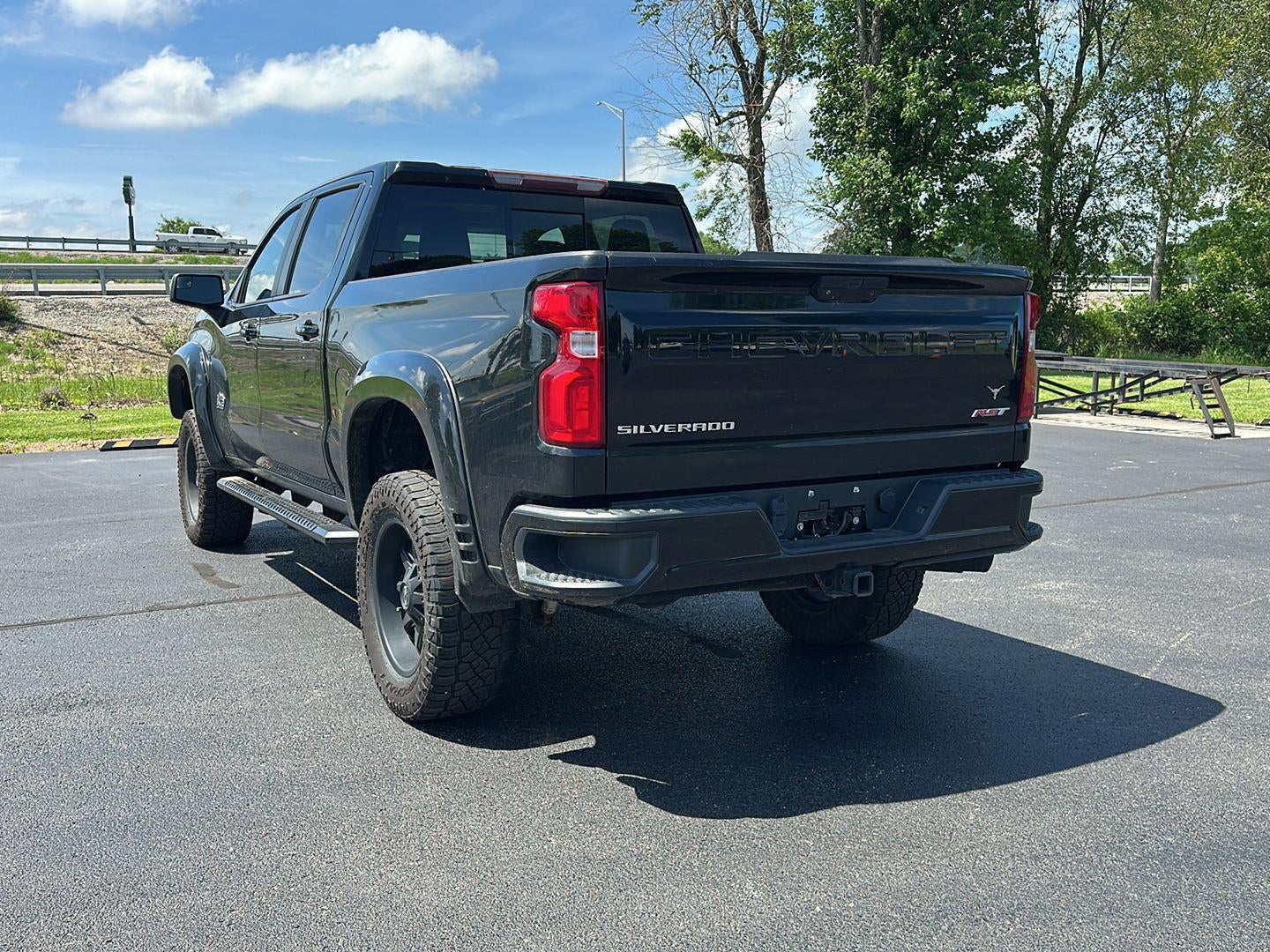

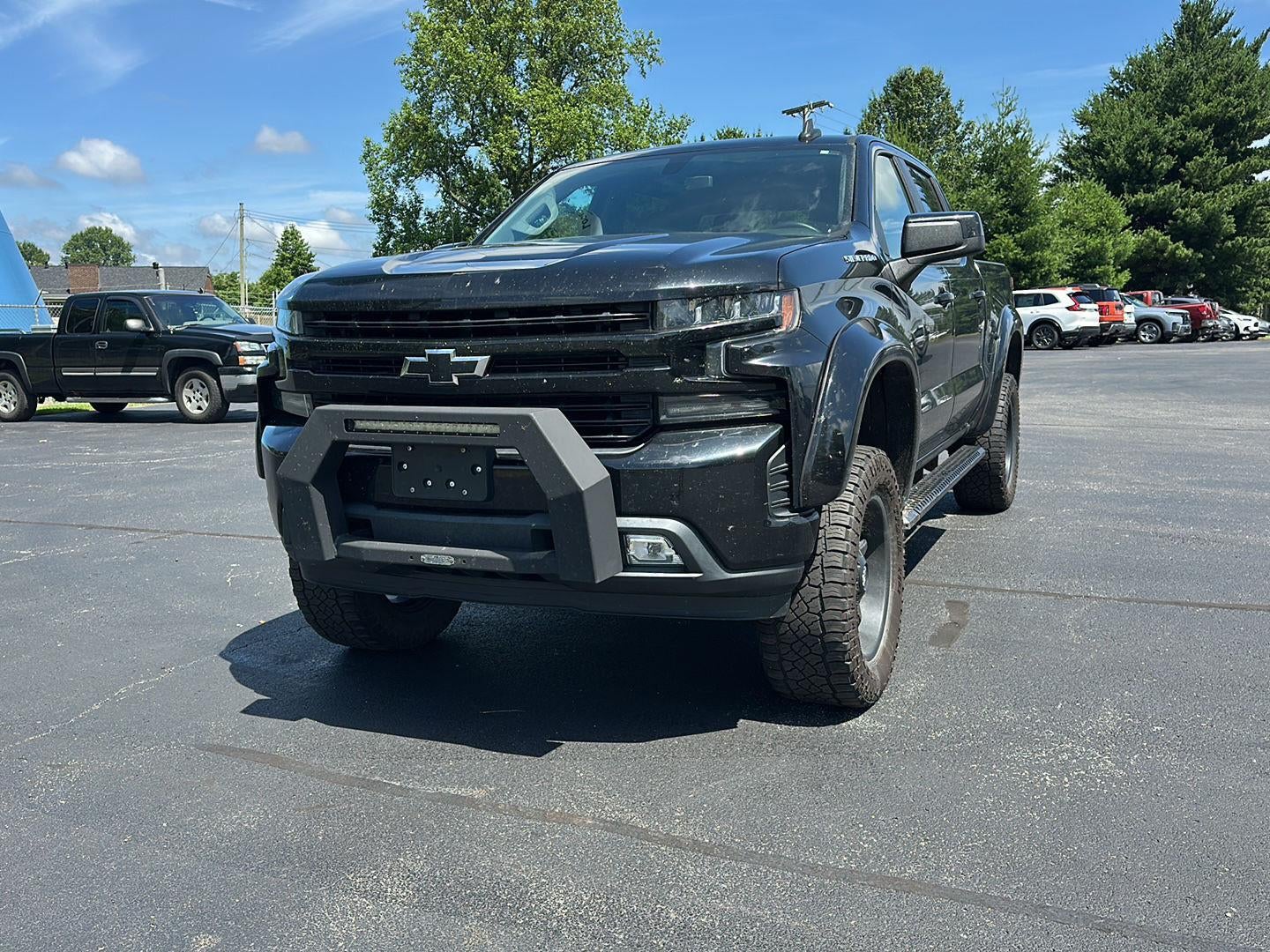

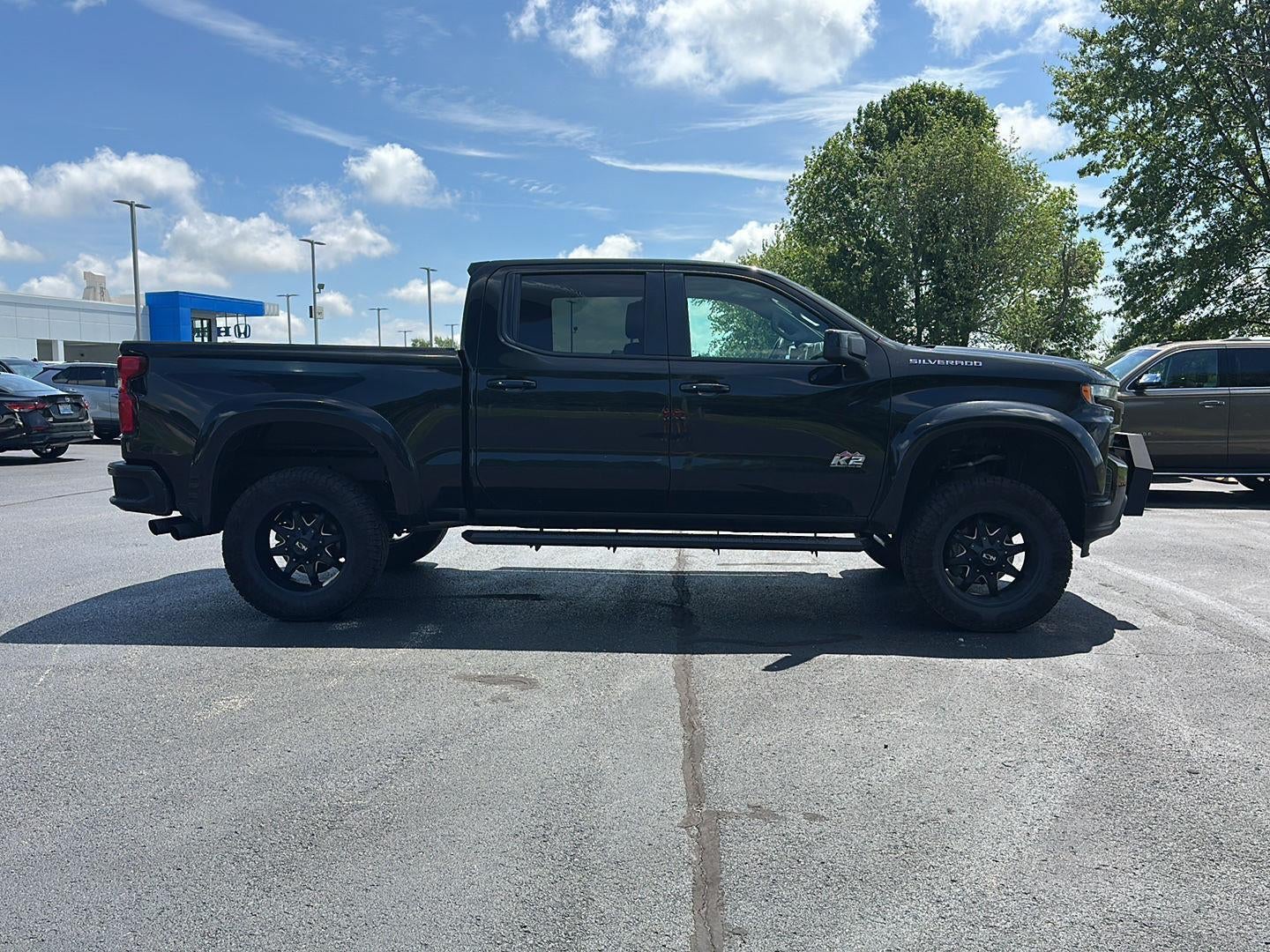

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.8
